bySol-Lite lightweight and long life Sol-ChargerTM Pack is a portable solar powered
battery charger for lead-acid and other batteries. It is designed to perform in any outdoor environment and
especially for any remote power needs. The Sol-ChargerTM Pack is available in rated
power output from 5, 10 to 20 Wp, which can charge 12 V lead-acid batteries, or operate DC loads with small to
moderate energy requirements directly.
It is maintenance free and easy to install, which can be easily mounted on flat surfaces by bolts or double stick
tape, and can be connected into panel strings with nylon cord for easy folding and temporary fastening.
The Sol-ChargerTM Pack is developed and manufactured under high quality standards.
And it is super green with using the natural charging power of the sun.
Features
5 to 20 Wp Sol-ChargerTM Packs with controller for charging local 12 V
lead-acid batteries and others.
Multiple same sized Sol-ChargerTM Panels can be string-connected (up to max.
100 Wp) to provide larger power with series and/or parallel interconnections (See Table 1).
Made with high efficiency silicon crystal solar cells, which can provide high power density output on smaller
footprint panel.
Ultra-thin and light weight: it is only approx 5 mm thick, and the no glass design makes it much lower
weight and more portable than large scale technology solar panels.
Robust structure: these solar panels are made on thin, rigid and rugged aluminum-plastic sandwich (APS)
substrates.
The special sun and weather-proof encapsulation materials are proven for over 20 years good resilience to UV and
wide range weather exposure. They allow maximum light transmission to the crystalline cells for high efficiency
operation, which together increases the panel lifetime to 10-15+ years.
Equipped with a separate solar charge controller, which can offer complete electronic protection, such as
overcharge and discharge protection, short circuit protection, and reversed polarity connection protection, etc.
Each panel has 4 corner grommet holes for easy mounting by bolts or suction cups or nylon cord or wires. The
Sol-Chargers can also be connected by nylon cord for easy folding into packs for transport and reposition in
daylight.
Benefits
Daily charge 12 V lead-acid batteries (or others) with solar panel and strings sized for use as needed.
Same sized Sol-ChargerTM Packs can be connected in series and/or parallel to
meet larger power and/or voltage needs.
Sol-ChargerTM Packs work with conventional lead-acid batteries, sealed
"maintainer free" batteries, value regulated lead-acid (VRLA), absorbed glass mat (AGM) and gel cell, as well as
others.
Maintenance free, except for surface cleaning when needed, and easy to use and suitable for either portable use
or permanent mounting.
Ideal for battery operated gadgets, in- and out-door lighting, emergency power supply, camping and remote power
applications, etc.

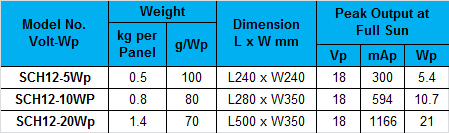

Table 1 - Specifications
Warranty
We can guarantee our proven quality products only if they are marked with our trade mark logo like the water mark
logo on a dollar bill.
This product is guaranteed by three (3) years limited warranty.
