The long life Basic 'No Frills' Sol-ChargerTM System with controller box is designed
to charge local supply 12 V lead-acid batteries to be used as a home power supply in remote rural areas, at lowest
possible cost, and with 10 to 15+ years high performance.
Multiple Sol-ChargerTM Panels can be connected by durable and weather-proof nylon
rope, and fastened to a thatch or corrugated metal roofs. It makes a more powerful supply system ranging from 10 Wp
to 100 Wp for daily charging the 12 V batteries.
Features
5, 10 and 20 Wp respective remote village Sol-ChargerTM Panels are
available. Multiple same sized panels with controller to form Basic 'No Frills'
Sol-ChargerTM System for charging local supply 12 V lead-acid batteries and others.
Multiple same sized Sol-ChargerTM Panels can be string-connected (up to max. 100
Wp) to provide larger power with series and/or parallel interconnections (See Table 1).
Made with high efficiency silicon crystal solar cells, which can provide high power density output on smaller
footprint panel.
Ultra-thin and light weight: it is only approx 5 mm thick, and the no glass design makes it much lower weight and
more portable than large scale technology solar panels.
Robust structure: these solar panels are made on thin, rigid and rugged aluminum-plastic sandwich (APS)
substrates.
The special sun and weather-proof encapsulation materials are proven for over 20 years good resilience to UV and
wide range weather exposure. They allow maximum light transmission to the crystalline cells for high efficiency
operation, which together increases the panel lifetime to 10-15+ years.
Red LED charge- and volt - indicators to indicate the series or parallel connection.
Equipped with a separate solar charge controller, which can offer complete electronic protection, such as
overcharge and discharge protection, short circuit protection, and reversed polarity connection protection, etc.
The Sol-ChargerTM Panels can be connected by nylon cord or wires for easy
folding into packs for transport and reposition in daylight.
Benefits
Daily charge 12 V lead-acid batteries (or others) with solar panels and strings sized for use as needed.
Same sized Sol-ChargerTM Panels can be connected in series and/or parallel to
meet larger power and/or voltage needs.
Sol-ChargerTM Systems work with conventional lead-acid batteries, sealed
"maintainer free" batteries, value regulated lead-acid (VRLA), absorbed glass mat (AGM) and gel cell, as well as
others.
Maintenance free, except for surface cleaning when needed, and easy to use and suitable for portable use.
Ideal for battery operated gadgets, in- and out-door lighting, emergency power supply, camping and remote power
applications, etc.

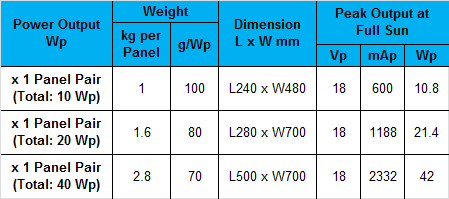

Table 1 - Specifications
Warranty
We can guarantee our proven quality products only if they are marked with our trade mark logo like the water mark
logo on a dollar bill.
This product is guaranteed by three (3) years limited warranty.
bySol-Lite
