The long life Marine Sol-ChargerTM System is a solar powered battery charger system
for lead-acid batteries, and is specifically designed to provide remote power for rugged marine and other outdoor
applications. It is maintenance free and easy to install, easily mounted on decks or other solid surfaces by bolts
through grommets or double-sided adhesive tape. The Marine Sol-ChargerTM System is
developed and manufactured under especially high quality standards. And it is super green, using the natural charging
power of the sun.
Features
5, 10 and 20 Wp respective Marine Sol-ChargerTM Panels are available. Single
or multiple same sized panel(s) with controller to form Marine Sol-ChargerTM
System for charging marine 12 V lead-acid batteries and others.
Multiple same sized Sol-ChargerTM Panels can be string-connected (up to max. 100
Wp) to provide larger power with series and/or parallel interconnections (See Table 1).
Made with high efficiency silicon crystal solar cells, which can provide high power density output on smaller
footprint panel.
Ultra-thin and light weight: it is only approx 6 mm thick, and the no glass design makes it much lower weight and
more portable than large scale technology solar panels.
Robust structure: these solar panels are made on thin, rigid and rugged aluminum-plastic sandwich (APS)
substrates, and anodized aluminum frames are installed around the panel to protect against salt water corrosion.
The special sun and weather-proof encapsulation materials are proven for over 20 years good resilience to UV,
salt water and wide range weather exposure. They allow maximum light transmission to the crystalline cells for high
efficiency operation, which together increases the panel lifetime to 10-15+ years.
Red LED charge- and volt-indicators to indicate the series or parallel connection.
Equipped with a separate solar charge controller, which can offer complete electronic protection, such as
overcharge and discharge protection, short circuit protection, and reversed polarity connection protection, etc.
Each panel has 4 corner grommet holes for easy mounting by bolts.
Benefits
Daily charge 12 V lead-acid batteries (or others) with solar panels and strings sized for use as needed.
Same sized Sol-ChargerTM Panels can be connected in series and/or parallel to
meet larger power and/or voltage needs.
Sol-ChargerTM Systems work with conventional lead-acid batteries, sealed
"maintainer free" batteries, value regulated lead-acid (VRLA), absorbed glass mat (AGM) and gel cell, as well as
others.
Maintenance free, except for surface cleaning when needed, and easy to use and suitable for permanent mounting.
Different installation solutions, with double-sided tapes under the bottom of panels that will make it part of
your boat or with bolts through grommet holes that will enable easy installation and removal if needed.
Ideal for boats, yachts, RVs and other vehicles.

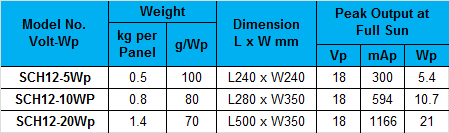

Table 1 - Specifications
Warranty
We can guarantee our proven quality products only if they are marked with our trade mark logo like the water mark
logo on a dollar bill.
This product is guaranteed by five (5) years limited warranty.
bySol-Lite
